Cylinder Valve WN52-02

0
Views: 732
Product Details

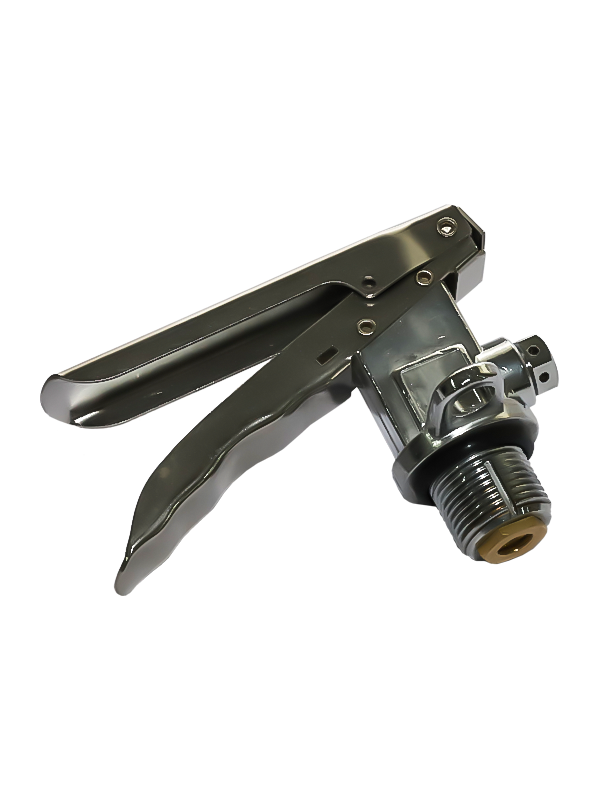

  • Cylinder valve
    Drawing No.

    Inlet

    thread

    Dip tube

    thread

    Outlet

    thread

    Working

    pressure(bar)

    Test

    pressure(bar)

    PRD

    pressure(bar)

    Working

    temperature

    Certificate

    Using

    medium

    WN52-50-0Rev.0 PZ27.8 M10x1 M22x1.5 150 225 210±15 -40℃~+60℃ Type License O2
    WN52-55-0Rev.2 25E G1/4 W21.8 / 250 190~209 -30℃~+60℃ TPED CO2
    WN52-56-0Rev.2 25E G1/4 W21.8 / 315 315~346 -30℃~+60℃ TPED CO2
    WN52-56A-0Rev.0 25E G1/4 W21.8 / 300 300~330 -30℃~+60℃ TPED CO2
    WN52-65-0Rev.0 25E G1/4 W21.8 166 250 210±15 -30℃~+60℃ No Certification CO2
    WN52-65A-0Rev.0 25E G1/4 W21.8 174 250 225±22.5 -30℃~+60℃ No Certification CO2
    Breathing apparatus valve
    Drawing No.

    Inlet

    thread

    Dip tube

    thread

    Outlet

    thread

    Working

    pressure(bar)

    Test

    pressure(bar)

    PRD

    Pressure(bar)

    Working

    temperature

    Using

    medium

    WN54-01-0Rev.0 M18x1.5 M5 G 5/8 300 450 450~517.5 -40℃~+60℃ Air
    WN54-02-0Rev.0 M18x1.5 M5 G 5/8 300 450 450~517.5 -40℃~+60℃ Air
Zhejiang Winner Fire Fighting Equipment Co., Ltd. was founded in 1994, has more than 1,000 sets of production and testing equipment. As a well-known China Cylinder Valve WN52-02 suppliers and Cylinder Valve WN52-02 company, the company is engaged in research, development, manufacture and sales of fire-fighting equipment and security equipment, and built a fire-fighting test room of the National Fire-fighting Inspection Center. It is one of the largest manufacturers in China to obtain product certification. The products include: Carbon dioxide fire extinguisher, dry powder fire extinguisher, water-based fire extinguisher, seamless steel cylinder, seamless aluminum alloy cylinder, high pressure cylinder for the on-board storage of compressed natural gas(CNG), cylinder valve, extinguisher valve, Cylinder Valve WN52-02 for sale and so on. With the enterprise principle "create value for customers to gain its own development and interests", Winner Fire is struggling all the way to become a standardized, internationalized and lasting enterprise.
